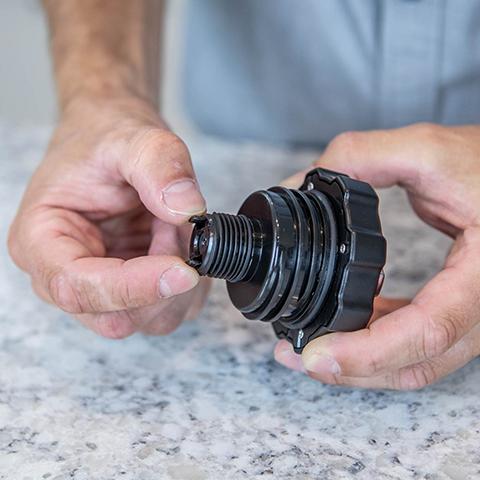

Cartridge Seal Replacement

Squeeze tabs and pull out
  • Squeeze tabs and pull retainer out.
Inspect cartridge seal
  • Inspect cartridge seal for cracks or defects. Replace if needed. Note orientation when removing.
Insert new seal
  • Insert new seal in orientation shown.
Reinstall retainer
  • Reinstall retainer and seal.
Push retainer
  • Push retainer down until both tabs click outward.
